Quick Look
| Density(g/cm³) | Tensile Strength | Yield Strength | Elongation at Break | Thermal Conductivity |
|---|---|---|---|---|
| 4.5 | 600MPa | 540MPa | - | - |
About the Material
Advantages:
High Strength and Low Weight: TC4 offers an exceptional strength-to-weight ratio, making it ideal for applications that require both strength and lightweight properties.
Corrosion Resistance: The material is resistant to corrosion, making it suitable for marine, chemical, and medical applications.
Biocompatibility: Titanium(TC4) is biocompatible, making it suitable for implants, prosthetics, and other medical applications.
Heat Resistance: TC4 retains its properties at high temperatures, making it suitable for aerospace and other high-temperature environments.
Limitations:
High Cost: Titanium is an expensive material, which can increase production costs.
Residual Stress: The SLM process can create residual stresses in parts, requiring heat treatment to relieve.
Post-Processing Requirements: Parts produced with SLM may require machining or polishing to achieve the desired surface finish.
Chemical Composition Table for Titanium(TC4)
| Element | Composition (%) |
| Titanium (Ti) | Balance |
| Aluminum (Al) | 5.5-6.75 |
| Vanadium (V) | 3.5-4.5 |
| Iron (Fe) | ≤ 0.3 |
| Oxygen (O) | ≤ 0.2 |
Mechanical Machining Properties Table for Titanium(TC4)
| Property | Value |
| Machinability Rating | Low |
| Cutting Speed (m/min) | 15-30 |
| Tool Wear Resistance | Low |
| Coolant Requirement | Essential |
| Surface Finish Quality | Moderate |
Design Parameters Table for SLM Printing with Titanium(TC4)
| Maximum Bulid Size（mm） | Minimum Wall Thickness | Minimum Drill Size | Minimum Assembly Gap | Tolerance |
| 150*150*200 | 1mm | 1mm | 0.15mm | ±0.2% *Length(lower limit of ±0.2 mm) |
Industry Applications and Case Studies for SLM Printing with Titanium(TC4)
Aerospace Industry:
Application: Production of lightweight structural components and engine parts.
Case Study: An aerospace manufacturer used TC4 to produce turbine blades, reducing weight while maintaining high strength and heat resistance.
Medical Industry:
Application: Manufacturing of implants, prosthetics, and surgical instruments.
Case Study: A medical device company used TC4 to produce custom hip implants, benefiting from the material's biocompatibility and strength.
Automotive Industry:
Application: Production of high-performance automotive components.
Case Study: A high-performance car manufacturer used TC4 to create lightweight exhaust components, improving vehicle performance.
Frequently Asked Questions (FAQs) about SLM Printing with Titanium(TC4)
What are the benefits of using Titanium(TC4) in 3D printing?
Titanium(TC4) offers a high strength-to-weight ratio, corrosion resistance, biocompatibility, and heat resistance, making it ideal for aerospace, medical, and automotive applications.
Is Titanium(TC4) suitable for functional parts?
Yes, Titanium(TC4) is suitable for functional parts that require high strength, durability, and resistance to corrosion and heat.
What industries benefit from SLM printing with Titanium(TC4)?
Industries such as aerospace, medical, and automotive benefit from the lightweight strength and durability of Titanium(TC4).
How accurate is SLM printing with Titanium(TC4)?
SLM printing with Titanium(TC4) can achieve tolerances of ±0.1 mm, suitable for most high-precision applications.
What post-processing is required for Titanium(TC4)-printed parts?
Post-processing may include heat treatment, machining, and polishing to improve mechanical properties and surface finish.
Can Titanium(TC4) be used in high-temperature environments?
Titanium(TC4) has a maximum operating temperature of 400°C, making it suitable for high-temperature applications.
How strong are Titanium(TC4)-printed parts?
Titanium(TC4)-printed parts are strong, lightweight, and durable, making them suitable for load-bearing and structural applications.
Finishing Options

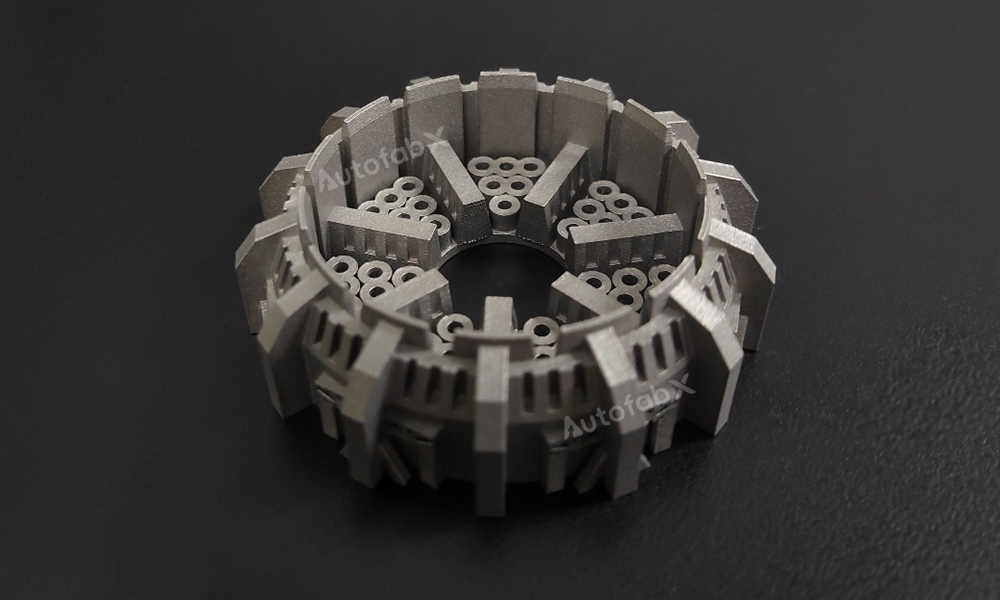

Parts Made by AutofabX
