Quick Look

Density(g/cm³)Tensile StrengthYoung's ModulusElongation at BreakHeat Deflection Temperature
1.148MPa1483MPa56%51℃
Density(g/cm³)
1.1
Tensile Strength
48MPa
Young's Modulus
1483MPa
Elongation at Break
56%
Heat Deflection Temperature
51℃

About the Material

Advantages:

  1. Flexibility and Toughness: White Nylon 11 provides good elongation at break, making it suitable for parts that need flexibility and toughness.

  2. Chemical Resistance: Nylon 11 is resistant to a wide range of chemicals, making it suitable for industrial applications.

  3. Biocompatibility: The biocompatible nature of Nylon 11 makes it suitable for medical and wearable applications.

  4. Sustainable: Derived from castor oil, Nylon 11 is a more sustainable option compared to petroleum-based materials.

Limitations:

  1. Lower Stiffness: Compared to Nylon 12, Nylon 11 has lower stiffness, which may limit its use in load-bearing applications.

  2. Cost: Nylon 11 is generally more expensive compared to other nylon materials, which may affect its adoption for cost-sensitive projects.

  3. Surface Finish: Parts may require additional post-processing to achieve a polished surface due to slight porosity.

Chemical Composition Table for White Nylon 11

ComponentComposition
Nylon 11100%
Additives (Colorants)None

Mechanical Machining Properties Table for White Nylon 11

PropertyValue
Machinability RatingModerate
Cutting Speed (m/min)15-25
Tool Wear ResistanceModerate
Coolant RequirementOptional
Surface Finish QualityModerate

Design Parameters Table for SLS Printing with White Nylon 11

Maximum   Bulid Size（mm）Minimum Wall   ThicknessMinimum Drill   SizeMinimum   Assembly GapTolerance
190*240*3100.8mm1mm0.2mm±0.3%   *Length(lower limit of ±0.2 mm)

Industry Applications and Case Studies for SLS Printing with White Nylon 11

  1. Medical Industry:

    • Application: Production of prosthetics and wearable medical devices.

    • Case Study: A medical device manufacturer used White Nylon 11 to produce prosthetic limbs, benefiting from the material's flexibility and biocompatibility.

  2. Consumer Goods:

    • Application: Manufacturing of durable and flexible consumer products.

    • Case Study: A consumer goods company used SLS with White Nylon 11 to produce wearable accessories, benefiting from the material's comfort and durability.

  3. Industrial Equipment:

    • Application: Production of jigs, fixtures, and components that require flexibility.

    • Case Study: A manufacturing company used White Nylon 11 to create custom tooling, ensuring high durability and flexibility for assembly processes.

Frequently Asked Questions (FAQs) about SLS Printing with White Nylon 11

  1. What are the benefits of using White Nylon 11 in 3D printing?

    • White Nylon 11 offers high flexibility, impact resistance, chemical resistance, and biocompatibility, making it ideal for functional parts and medical applications.

  2. Is White Nylon 11 suitable for functional parts?

    • Yes, White Nylon 11 is suitable for functional parts that require flexibility, toughness, and chemical resistance.

  3. What industries benefit from SLS printing with White Nylon 11?

    • Industries such as medical, consumer goods, and industrial manufacturing benefit from the versatility and flexibility of White Nylon 11.

  4. How accurate is SLS printing with White Nylon 11?

    • SLS printing with White Nylon 11 can achieve tolerances of ±0.3 mm, suitable for most functional applications.

  5. What post-processing is required for White Nylon 11-printed parts?

    • Post-processing may include bead blasting, polishing, or dyeing to improve the surface finish and appearance.

  6. Can White Nylon 11 be used in high-temperature environments?

    • White Nylon 11 has a heat deflection temperature of 95°C, making it suitable for moderate-temperature applications but not for high-heat environments.

  7. How strong are White Nylon 11-printed parts?

    • White Nylon 11-printed parts are strong, flexible, and durable, making them suitable for functional applications that require impact resistance and toughness.

Finishing Options

Name
Colors
Can Be Applied with
Provides a colored matte finish, versatile across many materials, moderate durability.
Paint Matte
Wide range of colors available (e.g., black, white, gray, blue, red, etc.)
Provides a colored matte finish, versatile across many materials, moderate durability.
Sand Blasting
-
Provides a uniform surface texture.
Vapor Smooth A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Vapor Smooth
A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
Dye Black
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
Provides a colored matte finish, versatile across many materials, moderate durability.
Name
Paint Matte
colors
Wide range of colors available (e.g., black, white, gray, blue, red, etc.)
Can Be Applied with
Provides a colored matte finish, versatile across many materials, moderate durability.
Name
Sand Blasting
colors
-
Can Be Applied with
Provides a uniform surface texture.
Vapor Smooth A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Name
Vapor Smooth
colors
Can Be Applied with
A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
Name
Dye Black
colors
Can Be Applied with
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
1 / 4

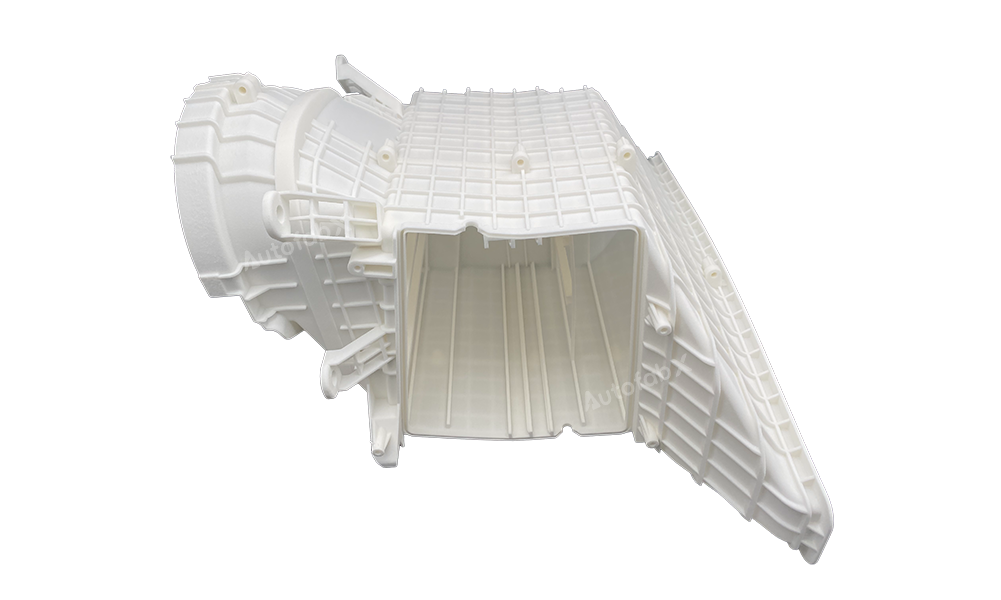

Parts Made by AutofabX
