Quick Look

DensityMelting PointThermal ConductivityElectrical ResistivityCoefficient of Expansion
7.8 g/cm³1400-1500°C30-50 W/m·K0.2-0.6 µΩ·m12-14 µm/m·K
Density
7.8 g/cm³
Melting Point
1400-1500°C
Thermal Conductivity
30-50 W/m·K
Electrical Resistivity
0.2-0.6 µΩ·m
Coefficient of Expansion
12-14 µm/m·K

About the Material

Advantages:

  1. High Strength and Durability: Alloy steel provides excellent tensile and yield strength, making it suitable for heavy-duty applications.

  2. Heat and Wear Resistance: Alloying elements enhance the material's resistance to heat and wear, extending the lifespan of components.

  3. Versatility: Suitable for a wide range of industries, including automotive, aerospace, and industrial sectors.

  4. Complex Geometries: Rapid Investment Casting enables the creation of intricate alloy steel components that are difficult to achieve with traditional casting methods.

  5. Weldability: Many alloy steels are weldable, providing flexibility for further fabrication and assembly.

Limitations:

  1. Cost: Alloy steel is more expensive compared to carbon steel, which may increase the overall cost of production.

  2. Corrosion Susceptibility: Some alloy steels may require protective coatings or treatments to prevent corrosion in certain environments.

  3. Machining Difficulty: Alloy steel is harder to machine, requiring specialized tools and techniques, which can increase post-processing time and costs.

  4. Weight: Alloy steel is relatively heavy, which may limit its use in applications where weight reduction is critical.

Chemical Properties Table

Element

Iron (Fe)

Carbon (C)

Chromium (Cr)

Manganese (Mn)

Nickel (Ni)

Molybdenum (Mo)

Typical Percentage (%)

90-96

0.1-1.2

0.5-2.0

0.3-1.0

0.5-2.0

0.1-1.0


Machining Properties Table

Property

Machinability Rating

Cutting Speed (m/min)

Tool Wear Resistance

Coolant Requirement

Surface Finish Quality

Value

Moderate

60-120

High

Recommended

High

Rapid Investment Casting Alloy Steel Design Recommendations:

Maximum   Bulid Size (mm)Minimum Wall   Thickness (mm)Minimum   Assembly Gap (mm)ToleranceMinimum End   Mill Size (mm)Minimum Drill   Size (mm)
600x600x60010.10.30%//

Industry Applications and Case Studies for Rapid Investment Casting Alloy Steel:

  1. Automotive Industry:

    1. Application: Production of gears, shafts, and suspension components.

    2. Case Study: An automotive manufacturer used Rapid Investment Casting to produce alloy steel gears, achieving high strength and wear resistance for transmission systems.

  2. Aerospace Industry:

    1. Application: Manufacturing of turbine blades, structural components, and landing gear parts.

    2. Case Study: An aerospace company employed Rapid Investment Casting to create alloy steel structural components, ensuring high strength and reliability under extreme conditions.

  3. Industrial Machinery:

    1. Application: Production of machine components, heavy-duty gears, and wear-resistant parts.

    2. Case Study: An industrial equipment manufacturer used alloy steel to produce durable gears, enhancing the performance and lifespan of their machinery.

  4. Oil and Gas Industry:

    1. Application: Manufacturing of valves, fittings, and drill components.

    2. Case Study: A company in the oil and gas sector used Rapid Investment Casting to create alloy steel valves, providing high strength and resistance to wear in harsh environments.

Frequently Asked Questions (FAQs) about Rapid Investment Casting Alloy Steel:

  1. What are the benefits of using alloy steel in Rapid Investment Casting?

    1. Alloy steel offers high strength, wear resistance, heat resistance, and versatility, making it suitable for a wide range of applications.

  2. Is Rapid Investment Casting suitable for high-volume alloy steel production?

    1. Rapid Investment Casting is most cost-effective for prototyping and low to medium production volumes. For very high volumes, other casting methods may be more economical.

  3. What industries benefit from alloy steel in Rapid Investment Casting?

    1. Industries such as automotive, aerospace, industrial machinery, and oil and gas benefit from alloy steel's strength, durability, and resistance to heat and wear.

  4. How does alloy steel compare to carbon steel in terms of cost and performance?

    1. Alloy steel is generally more expensive than carbon steel but offers enhanced strength, wear resistance, and heat resistance, making it suitable for more demanding applications.

  5. What are the limitations of using alloy steel in Rapid Investment Casting?

    1. Limitations include higher cost, potential corrosion susceptibility, machining difficulty, and weight compared to lighter materials.

  6. What are the typical applications for alloy steel in Rapid Investment Casting?

    1. Typical applications include automotive gears, aerospace structural components, industrial machinery parts, and oil and gas fittings.

  7. How can corrosion in alloy steel castings be minimized?

    1. Applying protective coatings or using corrosion-resistant alloy compositions can help minimize corrosion in alloy steel castings.

  8. Is alloy steel suitable for high-stress applications?

    1. Yes, alloy steel's high strength and toughness make it ideal for high-stress and heavy-duty applications across various industries.

Finishing Options

Name
Colors
Can Be Applied with
Sand Blasting
-
Provides a uniform surface texture.
Polishing
-
Creates a smooth, polished finish, improves aesthetic appeal.
Powder Coating
Provides a wide range of colors
Provides a protective coating that improves corrosion resistance and can give a uniform, colored finish.
Adds color and a protective layer against corrosion.
Painting
Painting provides extensive color options, allowing for a high degree of customization for different aesthetic and protective needs.
Adds color and a protective layer against corrosion.
Electrocoating
Typically finished in black, gray, or neutral tones; bright or vibrant colors are less common due to the nature of E-coat.
Ensures thorough coverage and corrosion protection.
Shot Blasting
-
Strengthens the material surface and removes impurities.
Galvanizing
Galvanizing
Silvery-gray
Offers rust protection with a zinc coating.
Name
Sand Blasting
colors
-
Can Be Applied with
Provides a uniform surface texture.
Name
Polishing
colors
-
Can Be Applied with
Creates a smooth, polished finish, improves aesthetic appeal.
Name
Powder Coating
colors
Provides a wide range of colors
Can Be Applied with
Provides a protective coating that improves corrosion resistance and can give a uniform, colored finish.
Adds color and a protective layer against corrosion.
Name
Painting
colors
Painting provides extensive color options, allowing for a high degree of customization for different aesthetic and protective needs.
Can Be Applied with
Adds color and a protective layer against corrosion.
Name
Electrocoating
colors
Typically finished in black, gray, or neutral tones; bright or vibrant colors are less common due to the nature of E-coat.
Can Be Applied with
Ensures thorough coverage and corrosion protection.
Name
Shot Blasting
colors
-
Can Be Applied with
Strengthens the material surface and removes impurities.
Galvanizing
Name
Galvanizing
colors
Silvery-gray
Can Be Applied with
Offers rust protection with a zinc coating.
1 / 7

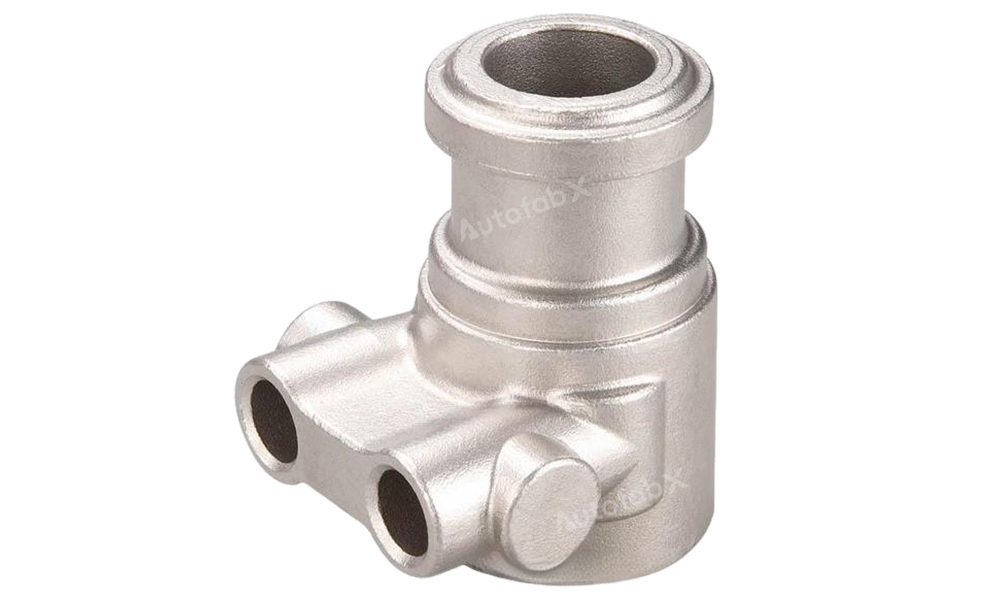

Parts Made by AutofabX

RIC Alloy Steel
RIC Alloy Steel
