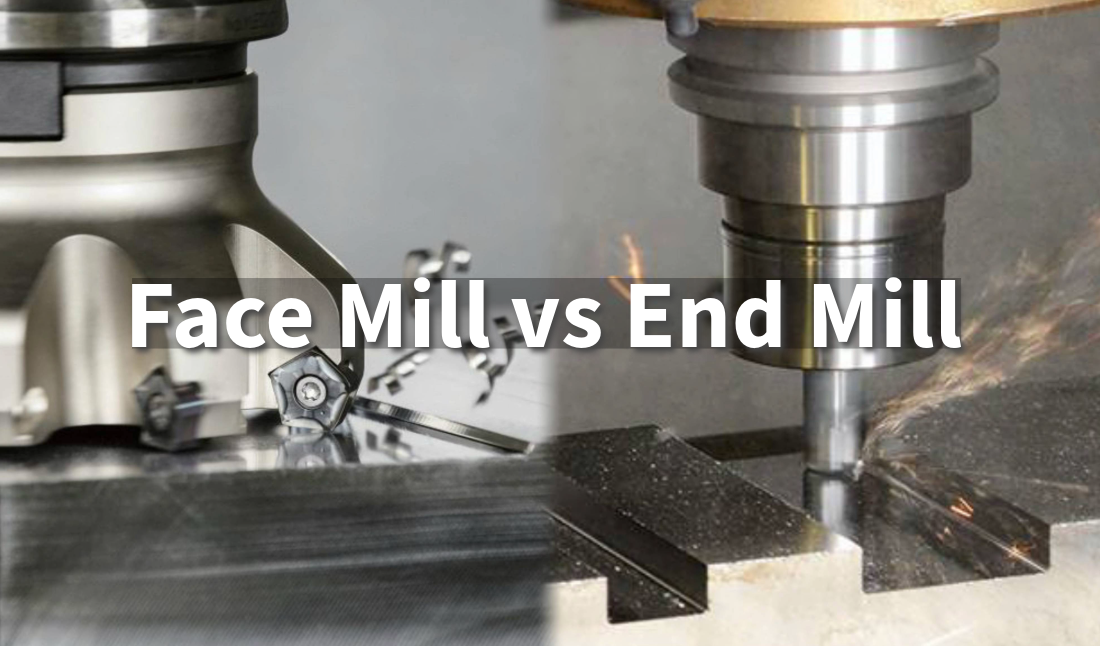

Face Mill vs End Mill: Understanding Their Differences & Uses
Face mills and end mills serve different machining purposes. This guide helps you understand the distinctions, benefits, and practical uses of each milling tool.
Introduction
Milling tools are used in CNC (Computer Numerical Control) machines to shape materials like metal or plastic. Two of the most common milling tools are face mills and end mills. Each has its own strengths and specific jobs. Choosing the right one is important for the success of any project because it affects the quality and efficiency of the machining process.
What Is a Face Mill?
A face mill is a type of milling tool that is used to smooth or shape the surface of a material. It has cutting edges on the outside that can remove large amounts of material quickly. The main purpose of a face mill is to create a flat, smooth surface. The tool itself is quite wide, allowing it to cover more area in a shorter time.
Face mills are used when the goal is to give the material a good finish or when the top layer of a part needs to be evened out. They are great for projects that need a clean, polished surface without a lot of intricate detail. These tools are also known for being able to handle harder materials and create smooth finishes efficiently.
What Is an End Mill?
An end mill is different from a face mill because it can be used for a wider range of jobs. It has cutting edges on both the sides and the tip, making it perfect for detailed cuts. End mills are commonly used to create slots, grooves, or detailed shapes in a material. They come in different shapes, such as flat or rounded ends, to make different kinds of cuts.
End mills are very versatile, which means they can be used in lots of different projects. They can cut sideways, drill holes, or create intricate shapes. Because of their design, end mills are great for cutting out complex features and details that need precision.
Face Mill vs End Mill: Key Differences
Criteria | Face Mill | End Mill |
|---|---|---|
Purpose | Surface finishing and smoothing large areas. | Detailed cutting, shaping, and slotting. |
Design | Wide tool with cutting inserts on the edges. | Long tool with cutting edges on the sides and tip. |
Material Removal Rate | High; removes a large amount quickly. | Lower; more suitable for precise cuts. |
Surface Finish | Provides a smooth, polished finish. | Suitable for precision details, not always smooth. |
Cost | Generally higher; cutting inserts can be replaced. | Typically lower; wears out faster. |
Versatility | Limited to flat surface cuts. | Highly versatile; can cut slots, holes, and edges. |
When to Use a Face Mill vs an End Mill
Source: enerpac.com
Face Milling Situations:
Face mills are ideal when you need to remove a large, flat layer from the top of a piece of material. For example, if you want to make the surface of a metal plate even and smooth, a face mill is the right tool. It works best when you need to cover a lot of area in a short time and get a clean, polished surface.
End Milling Situations:
End mills are used for projects that require detailed shapes or complex cuts. For example, if you need to carve out a groove or create a slot, an end mill is the tool for the job. End mills can also cut along the edges and make small, precise holes, which makes them very versatile for different kinds of detailed work.
Advantages and Disadvantages
Face Mill Pros and Cons
Advantages:
Speed: Face mills can remove a large amount of material quickly.
Smooth Finish: They provide a smooth, polished surface, which is ideal for projects where the appearance of the finish is important.
Disadvantages:
Limited Detail: Face mills are not suitable for detailed work like grooves or small cuts.
Higher Cost: They tend to be more expensive than end mills due to their size and specialized cutting inserts.
End Mill Pros and Cons
Advantages:
Versatility: End mills are great for different types of cuts—side cutting, drilling, and detailed shaping.
Precision: They can create intricate shapes and precise details that face mills cannot.
Disadvantages:
Slower Material Removal: Compared to face mills, they take longer to remove large amounts of material.
Wears Out Faster: End mills wear out more quickly, especially when used for hard materials or repeated precise cuts.
How to Choose Between Face Milling and End Milling
Material and Job Requirements
Choosing between a face mill and an end mill depends on the type of work you are doing. If the project requires removing a large amount of material quickly, a face mill is the better choice. It works well for smoothing surfaces and preparing them for the next step.
On the other hand, if your project needs precise cuts, detailed shapes, or holes, an end mill is the tool you need. End mills offer flexibility to handle a range of tasks, from making deep cuts to creating intricate designs.
Workpiece Geometry:
The shape of the material also affects the choice. For example, if you are working with a flat plate and need a polished surface, a face mill is ideal. If you need to make cuts along the edges or create grooves, an end mill is better.
Conclusion
In CNC machining, both face mills and end mills play essential roles, but they serve different purposes. Face mills are best for removing large amounts of material and creating smooth surfaces, while end mills are ideal for precision cuts and detailed work. Knowing when to use each tool can help make projects more efficient and achieve the desired quality.
When choosing between a face mill and an end mill, think about the job requirements, the type of material you are using, and how much detail you need. Using the right tool will save time and give you a better finish, making the overall process more effective.
