3D Printing Tolerance: A Beginner’s Guide
Discover the essentials of 3D printing tolerance, including its definition, key factors, measurement techniques, and best practices for precision in your prints.
Introduction
As 3D printing transforms industries, from prototyping to manufacturing, precision has become essential—especially when it comes to tolerances. Tolerance is the acceptable variation in a part's dimensions, and achieving it accurately is key to making reliable, functional prints.
This article dives into the details of 3D printing tolerance, why it matters, the factors that impact it, and practical tips to improve your printing precision.
What is 3D Printing Tolerance?
3D Printing Tolerance is the acceptable range of difference between a printed part's actual dimensions and its intended measurements. It defines how much a part can vary from its design without losing its function or fit.
Getting the right tolerance is especially important in fields like aerospace, automotive, and medical devices, where precise fitting is critical. Several factors can affect tolerance, including the accuracy of the printer, the properties of the material, the settings used during printing, and any post-processing steps. Managing these factors helps ensure that printed parts meet their required specifications.
Factors Affecting 3D Printing Tolerance
Here's a table outlining the factors affecting 3D printing tolerance:
Factor | Description |
|---|---|
Printer Precision | The type and accuracy of the 3D printer, including resolution and technology (FDM, SLA, SLS, etc.). |
Material Properties | Characteristics of the material used, such as thermal expansion, viscosity, and flow behavior. |
Print Settings | Parameters like layer height, print speed, and extrusion temperature that influence the final outcome. |
Post-Processing | Techniques applied after printing, such as sanding, smoothing, or assembly methods that affect dimensions. |
Environmental Factors | Conditions like temperature and humidity that can affect material behavior and printer performance. |
Design Considerations | The complexity of the design, including features like overhangs and intricate details that can impact accuracy. |
Measuring Tolerance in 3D Printing
Measuring tolerance in 3D printing is essential to ensure that printed parts meet the required specifications. Here are key methods and tools for measuring tolerance effectively:
Measurement Tools

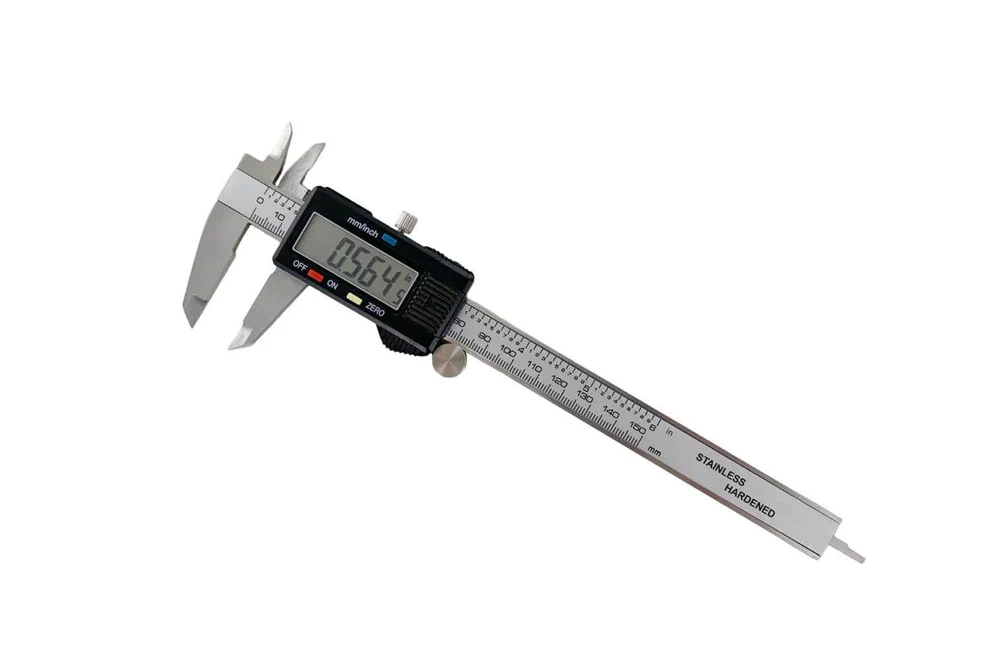

Digital Calipers:
Highly accurate for measuring external and internal dimensions, depths, and step heights.
Ideal for small parts and detailed measurements.
Source: arborsci.com

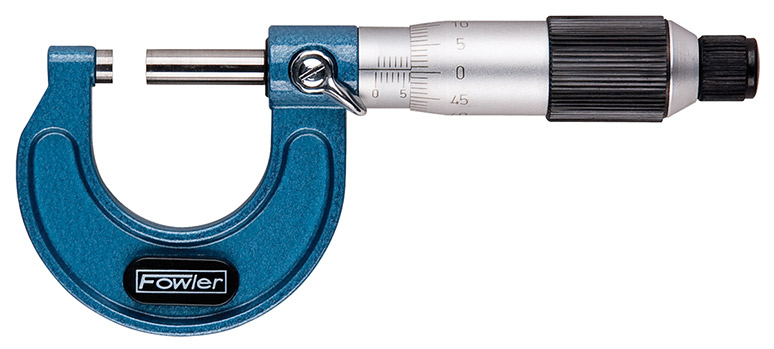

Micrometers:
Provides precise measurements for small tolerances, especially useful for thin parts or features.
Source: nicolscales.com

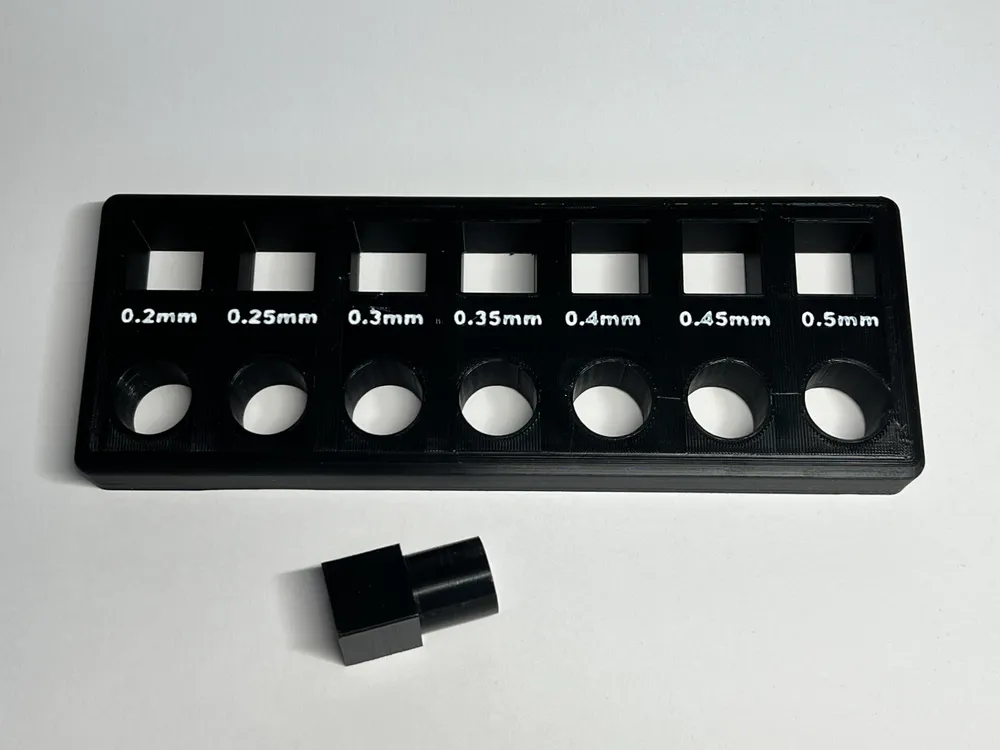

Gauge Blocks:
Used for verifying the dimensions of printed parts against known standards.
Can help in calibrating measurement tools for accuracy.
Source: makerworld.com

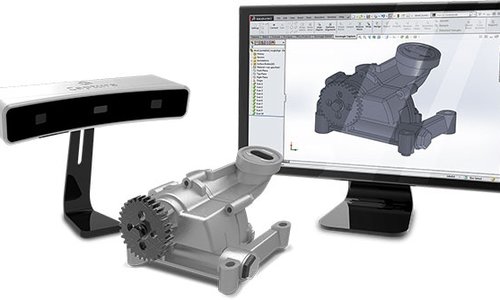

3D Scanners:
Capture the geometry of the printed part and compare it to the CAD model.
Useful for complex shapes and large parts.
Source: rapidmade.com
Measurement Techniques
Comparative Measurement: Compare the printed part against a known good part or standard.
Coordinate Measuring Machine (CMM): A more advanced option, where a probe touches various points on the part to collect dimensional data.
Surface Profilers: Measure the surface finish and texture, which can also impact tolerances in functional applications.
Standards for Tolerance
Refer to standards from organizations like ISO and ASME, which provide guidelines for acceptable tolerances based on application and material. Here’s a brief overview of some key tolerance standards relevant to 3D printing:
ISO 2768: Sets general tolerances for dimensions and shapes without specific indications, used for non-critical 3D-printed parts with medium or fine tolerances.
ISO 286-1 and ISO 286-2: Defines tolerance grades and fits for parts that need to work together, ensuring compatibility in assemblies.
ISO/ASTM 52900: Tailored for 3D printing, this standard specifies tolerances based on the unique characteristics of additive manufacturing, like layer resolution and material properties.
ASME Y14.5: Provides guidelines for precise geometric tolerances, ensuring accuracy in shapes and positioning for 3D-printed parts in complex assemblies.
Benefits of Following Tolerance Standards
Adhering to ISO and ASME tolerance standards helps manufacturers:
Ensure Compatibility: Standardized tolerances allow printed parts to fit with other components accurately, reducing assembly issues.
Maintain Quality Control: Standards simplify quality control processes, ensuring consistent dimensions and functionality across production runs.
Meet Industry Regulations: In regulated industries, such as medical or aerospace, meeting tolerance standards is essential for compliance and safety.
Recommended 3D Printing Tolerance
This table provides a quick reference for understanding the typical tolerance ranges associated with various 3D printing technologies.
3D Printing Technology | Typical Tolerance Range | Notes |
|---|---|---|
Fused Deposition Modeling (FDM) | ±0.5 mm to ±1.0 mm | Best for larger parts; tolerances may vary with material. |
Stereolithography (SLA) | ±0.1 mm to ±0.3 mm | High precision; ideal for detailed and intricate designs. |
Selective Laser Sintering (SLS) | ±0.2 mm to ±0.5 mm | Good for functional parts; can handle complex geometries. |
Digital Light Processing (DLP) | ±0.1 mm to ±0.3 mm | Similar to SLA, offers high detail and smooth finishes. |
Binder Jetting | ±0.3 mm to ±0.5 mm | Suitable for larger parts but less precise than SLA/SLS. |
PolyJet | ±0.1 mm to ±0.2 mm | Excellent for multi-material prints; very high detail. |
Multi Jet Fusion (MJF) | ±0.2 mm to ±0.5 mm | Effective for production parts; good balance of speed and accuracy. |
3D Printing Tolerance at AutofabX
At AutofabX, we take pride in our 3D printing precision, offering a standard tolerance of ±0.2 mm across most applications.
Here’s a detailed breakdown of typical tolerances by printing process:
Printing Process | Typical Tolerance |
|---|---|
FDM | ±0.5 mm |
SLA | ±0.1 mm |
SLS | ±0.3 mm |
DMLS | ±0.1 mm |
PolyJet | ±0.05 mm |
This range of tolerances ensures that our solutions meet the needs of diverse industries, whether it’s prototyping or producing functional parts. Our advanced techniques and ISO-certified quality assurance processes guarantee consistent results tailored to your needs.
For more information, please refer to our 3D printing service page.
Best Practices for Optimal Tolerance
Equipment and Materials
Printer Selection: Choose a printer suitable for your specific needs. SLA printers offer high precision for detailed parts, while FDM printers are ideal for larger-scale projects.
Material Choice: Some materials, like metals, have tighter tolerance capabilities, while thermoplastics may require more relaxed tolerances. Opt for materials with low thermal expansion, such as PLA, to minimize warping and dimensional changes.
Regular Calibration: Calibrate your printer regularly to maintain consistent print quality.
Print Settings
Layer Height: Smaller layer heights result in finer detail and increased accuracy.
Print Speed: Slower print speeds allow for better material flow and adhesion.
Temperature Control: Ensure optimal extrusion and bed temperatures for your chosen material.
Design Considerations
Tolerance Modeling: Incorporate tolerances directly into your CAD models to account for potential variations.
Support Structure: Use support structures strategically to prevent sagging and maintain accuracy in complex geometries.
Prototyping and Post-Processing
Test Prints: Create test prints to identify design issues early on and make necessary adjustments.
Post-Processing: Employ techniques like sanding or machining to refine dimensions and improve surface finish.
Maintenance and Documentation
Regular Maintenance: Keep your printer clean and well-maintained.
Documentation: Record print settings, results, and any failures to learn from past experiences.
Conclusion
Mastering 3D printing tolerance is essential for producing high-quality, reliable parts that meet industry standards. By understanding the various factors influencing tolerance and employing best practices, designers and manufacturers can significantly enhance the precision of their 3D printing processes.
