Decoding Shore Hardness Scale For 3D Printing

Published: Last Updated on:
shore hardness

This guide delves into the Shore Hardness Scale, explaining its importance in selecting the right materials for 3D printing.

Introduction - What is Shore Hardness

The Shore Hardness Scale is a crucial tool used to measure the hardness of various materials, including those commonly used in 3D printing.

It is a test used to measure how hard or soft different materials are. In other words, it tells you how easy or hard it is to make an indentation or leave a mark on a material.

What is the Shore Hardness Scale?

The Shore Hardness Scale is a standardized system used to measure the hardness of various materials. Developed by Albert Ferdinand Shore in the 1920s, it tells us how resistant a material is to being dented or pressed in.

There are different Shore Hardness scales, each for specific types of materials:

  • Shore A Scale: Used for softer materials like rubber and some plastics. It ranges from 0 (very soft) to 100 (very hard).

  • Shore D Scale: Used for harder materials like engineering plastics and 3D printing filaments. It also ranges from 0 (very soft) to 100 (very hard), with higher numbers meaning harder materials.

  • Shore OO Scale: Used for very soft materials like gels and foams. It follows the same 0 to 100 range, with lower numbers showing more softness.

Importance in 3D Printing

The Shore Hardness Scale is important in 3D printing because it helps users understand the material's properties. It guides them in choosing the right filaments, resins or other materials for their project.

For example, a higher Shore Hardness (Shore D 80-90) means the material is rigid and durable, ideal for strong, load-bearing parts. A lower Shore Hardness (Shore A 30-40) makes the material flexible, suitable for applications that need elasticity or cushioning.

How is Shore Hardness Measured?

Shore Hardness is measured using a tool called a durometer. The durometer has a spring-loaded tip that is pressed into the material, and the depth of the indentation determines the hardness. The result is shown as a number on the Shore Hardness scale (usually from 0 to 100).

Different durometers are used for different materials:

  • Shore A Durometer: For softer materials like rubber and elastomers.

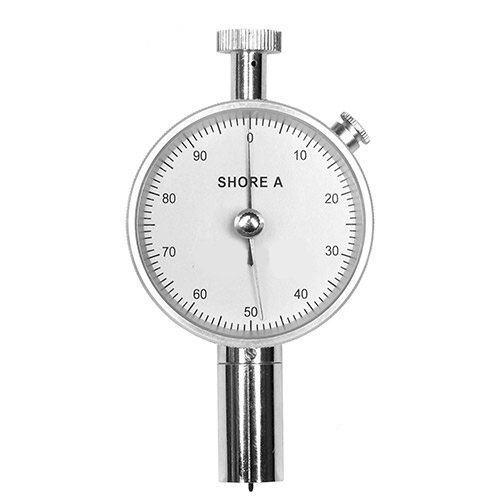

    Durometer - Shore A type
    Durometer - Shore A type
    Source: barnwell.co.uk

  • Shore D Durometer: For harder materials, such as many 3D printing filaments.

  • Shore OO Durometer: For very soft materials like gels and foams.

To ensure accurate results, durometers must be regularly calibrated using test blocks. This is important in 3D printing because material hardness affects the quality and performance of printed parts.

Shore Hardness in Material Selection

The Shore Hardness Scale is essential for choosing the right materials in 3D printing because it directly affects how flexible or strong a material will be.

Material Flexibility

Materials with lower Shore Hardness, such as TPU (Shore A 30-95), offer high flexibility and elasticity. These softer materials are ideal for applications that need to bend or absorb impact, like gaskets, seals, and phone cases.

Choosing a softer material can also improve durability in dynamic environments, preventing cracks or failures in flexible components.

Material Strength

Conversely, materials with higher Shore Hardness, like filaments with a Shore D hardness of 80-90, provide increased rigidity and durability. These harder materials excel in producing load-bearing parts, functional components, or items requiring high wear resistance.

Using a more rigid material ensures that printed parts maintain dimensional stability and perform under stress, making them reliable for industrial applications.

Shore Hardness Chart of Typical Materials

Material

Shore OO Hardness

Shore A Hardness

Shore D Hardness

Gelatin

10 - 20

N/A

N/A

Silicone Rubber (Soft)

20 - 30

25 - 50

N/A

Soft Foam (e.g., Polyurethane)

20 - 40

N/A

N/A

TPU (Thermoplastic Polyurethane)

N/A

80 - 95

N/A

Nitrile Rubber (Soft)

N/A

50 - 70

N/A

Polyethylene (Soft)

N/A

50 - 70

N/A

Thermoplastic Elastomer (TPE)

N/A

40 - 90

N/A

PVC (Soft)

N/A

50 - 80

N/A

PVC (Rigid)

N/A

N/A

80 - 90

Nylon

N/A

N/A

70 - 85

Polycarbonate (PC)

N/A

N/A

70 - 80

Acrylic

N/A

N/A

85

ABS (Acrylonitrile Butadiene Styrene)

N/A

N/A

60 - 80

Polystyrene

N/A

N/A

95

Aluminum

N/A

N/A

100

Hard Rubber

N/A

N/A

75 - 85

Notes:

Shore OO hardness is used for very soft materials, like gels and soft foams, making it relevant in applications such as cushioning and sealing.

Shore A is typically used for softer elastomers, while Shore D measures harder materials.

Conclusion

The Shore Hardness Scale is an important tool for anyone working with 3D printing. It helps users choose the right materials by showing how flexible or rigid they are.

Understanding these scales allows you to pick the best material for your project, whether you need something soft and flexible or strong and rigid. This makes it easier to create reliable and high-quality 3D-printed parts, no matter the industry.
